General |
|
|
GPON Standards |
ITU-T G.984 |
|
Distance |
20Km Max |
|
Data Rates |
Upstream:1.25Gbps, Downstream:2.5Gbps |
|
Wireless Standards |
IEEE 802.11be/ax/ac/n/a 5 GHz, IEEE 802.11be/ax/n/b/g 2.4 GHz |
|
Signal Rate |
5 GHz: 2882 Mbps(802.11be), 2.4 GHz: 688 Mbps(802.11be) |
|
Operation Frequency |
2.4GHz & 5GHz |
|
Wireless Sercuity |
WEP / WPA / WPA2 / WPA2 Mixed / WPA3 / WPA3 Mixed |
|
VOIP Standards |
SIP (RFC3261), ITU-T G.729/G.722/G.711a/G.711 |
|
5G Module Band
|
5G NR:
5G NR: 3GPP Release 15 NSA/ SA operation，Sub-6 GHz
5G NR NSA : n1/ 3/ 7/ 28/ 38/ 40/ 41/ 77/ 78
5G NR SA: n1/3/5/7/8/20/28/38/40/41/66/77/78
Downstream 4 × 4 MIMO: n1/ 3/ 7/ 28 / 38/ 40/ 41/ 66/ 77/ 78
Upstream 2 × 2 MIMO:n38/ 40/ 41/ 77/ 78
Downstream 2 × 2 MIMO:n5/ 8/ 20
LTE:
LTE Category: Downstream Cat 12， Upstream Cat 13
LTE-FDD: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28/ 66
LTE-TDD: B38/ 40/ 41
2 × 2 MIMO: B1/ 2/ 3/ 4/ 5/ 7/ 8/ 20/ 28/ 38/ 40/ 41/ 66
UMTS:
WCDMA: B1/ 2/ 5/ 8
|
|
Hardware |
|
|
Data Transfer Rate (Max)
|
5G SA Sub-6: Downstream 2 Gbps； Upstream 1 Gbps
5G NSA Sub-6: Downstream 2.6 Gbps； Upstream 650 Mbps
LTE: Downstream 600 Mbps； Upstream 150 Mbps
UMTS: Downstream 42.2 Mbps； Upstream 11 Mbps
|
|

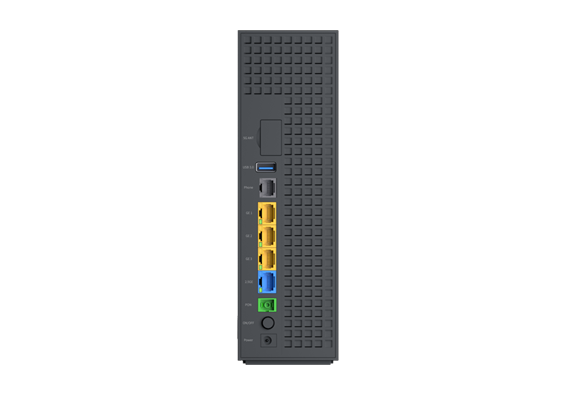

Interfaces |
1 x SC/APC GPON Port
1 x SIM Card slot
1 x 10/100/1000/2500Mbps LAN Ports
3 x 10/100/1000Mbps LAN Ports
1 x FXS Port
1 x USB3.0
|
|
Buttons |
Power ON/OFF Button, WPS/WiFi Button，Reset Button |
|
Power Supply |
DC 12V 2.5A |
|
Antenna |
4 x internal wifi antenna
4 x internal 5G NR antenna(2 x 5G NR External antennas)
|
|
Dimensions (W X D X H) |
230 x 170 x 70mm
|
|
Software Features |
|
|
WAN Type |
Dynamic IP/Static IP/PPPoE |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
Quality of Service |
WMM, Bandwidth Control |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
VPN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
|
Access Control |
Parental Control, Local Management Control, Host List, Access Schedule, Rule Management |
|
Firewall Security |
DoS, SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter IP and MAC Address Binding |
|
VOIP Features |
Two RJ-11 FXS ports for connecting to analog telephones, Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
|
Management |
Access Control, Local Management, Remote Management |
|
Internet Protocol |
IPv4, IPv6 |
|
Environment |
|
|
Operating Temperature |
0°C~40°C (32°F~104°F) |
|
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
|
Relative Humidity |
10%~90%, non-condensing |
|
Storage Humidity |
5%~95%, non-condensing |
|
Package Contents |
|
|
1 x GPON Router 1 x Quick Installation Guide 1 x Power Adapter |
|
