General |
|
|
GPON Standards |
ITU-T G.984 |
|
Distance |
20Km Max |
|
Data Rates |
Upstream:1.25Gbps, Downstream:2.5Gbps |
|
Wireless Standards |
IEEE 802.11ax/ac/n/a 5 GHz，IEEE 802.11ax/n/b/g 2.4 GHz |
|
Signal Rate |
5GHz：1201Mbps(802.11ax)，2.4GHz：300Mbps(802.11ax) |
|
Operation Frequency |
2.4GHz & 5GHz |
|
Wireless Sercuity |
WEP/WPA2/WPA2 Mix/WPA3/WPA3 Transition |
|
VOIP Standards |
SIP（RFC3261）、ITU-T G.729/G.722/G.711a/G.711 |
|
Hardware |
|
|

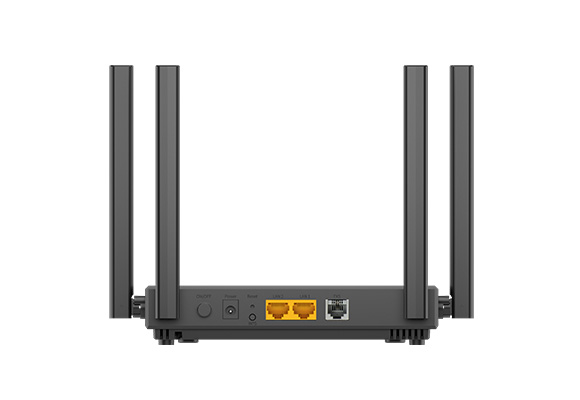

Interfaces |
1 x SC/APC GPON Port 2 x 10/100/1000Mbps LAN Ports 1 x FXS Port |
|
Buttons |
WPS/WiFi Button，Reset Button |
|
Power Supply |
DC 12V 1.5A |
|
Antenna |
4 x 5dBi Antennas |
|
Dimensions（宽××高） |
170×105×31mm |
|
Software Features |
|
|
WAN Type |
Dynamic IP/Static IP/PPPoE |
|
DHCP |
Server, Client, DHCP Client List, Address Reservation |
|
Quality of Service |
WMM, Bandwidth Control |
|
Port Forwarding |
Virtual Server, Port Triggering, UPnP, DMZ |
|
VPN |
802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode |
|
Access Control |
Parental Control, Local Management Control, Host List, Access |
|
Firewall Security |
DoS、SPI Firewall IP Address Filter/MAC Address Filter/Domain Filter |
|
VOIP Features |
One RJ-11 FXS ports for connecting to analog telephones Call forwarding, Call waiting, Call block, 3-way conference call, etc. |
|
Management |
Access Control Local Management Remote Management |
|
Internet Protocol |
IPv4、IPv6 |
|
Environment |
|
|
Operating Temperature |
0°C~40°C (32°F~104°F) |
|
Storage Temperature |
-40°C~70°C (-40°F~158°F) |
|
Relative Humidity |
10%~90%, non-condensing |
|
Storage Humidity |
5%~95%, non-condensing |
|
Package Contents |
|
|
1 x GPON Router 1 x Quick Installation Guide 1 x Power Adapter 1 x Ethernet Cable |
|
|
Certifications |
|
|
CE, RoHS |
|
