General

DSL Standards

VDSL2, ADSL2/2+, ADSL

Wireless Standards

IEEE802.11a/n/ac,5GHz, IEEE802.11b/g/n,2.4GHz

Signal Rates

5GHz: Up to 876Mbps, 2.4GHz: Up to 300Mbps

Operation Frequency

2.4GHz & 5GHz

Reception Sensitivity

5GHz

11a 6Mbps: -96dBm, 11a 54Mbps: -79dBm

11ac HT20: -71dBm, 11ac HT40: -66dBm, 11ac HT80: -63dBm,

11n HT20: -72dBm, 11n HT40: -71dBm

2.4GHz

11g 54M: -77dBm

11n HT20: -74dBm, 11n HT40: -72dBm

Wireless Sercuity

WEP, WPA / WPA2, WPA-PSK/ WPA2-PSK encryption

VOIP Standards

SIP (RFC3261)

ITU-T G.729/G.722/G.711a/G.711

Hardware

Interfaces

1 x DSL Port, 1 x 10/100/1000Mbps WAN Port, 4 x 10/100Mbps LAN Ports,

1 x FXS port

Buttons

Power ON/OFF Button, WPS Button, WiFi Button，Reset Button

Antenna

2 x 5dBi dual band internal antennas

Power Supply

DC 12V 1.5A

Dimensions (W X D X H)

（154 x 150 x 30) mm

Software Features

WAN Type

ATM/PTM/ETH/Dongle

DHCP

Server, Client, DHCP Client List, Address Reservation

Quality of Service

WMM, Bandwidth Control

Port Forwarding

Virtual Server, Port Triggering, UPnP, DMZ

VPN

PPTP, L2TP, IPSec

Firewall Security

DoS, SPI Firewall

IP Address Filter/MAC Address Filter/Domain Filter

IP and MAC Address Binding

Access Control

Parental Control, Local Management Control, Host List, Access

Schedule, Rule Management

Management

Access Control, Local Management, Remote Management

Internet Protocol

IPv4, IPv6

Environment

Operating Temperature

0°C~40°C (32°F~104°F)

Storage Temperature

-40°C~70°C (-40°F~158°F)

Relative Humidity

10%~90%, non-condensing

Storage Humidity

5%~95%, non-condensing

Package Contents

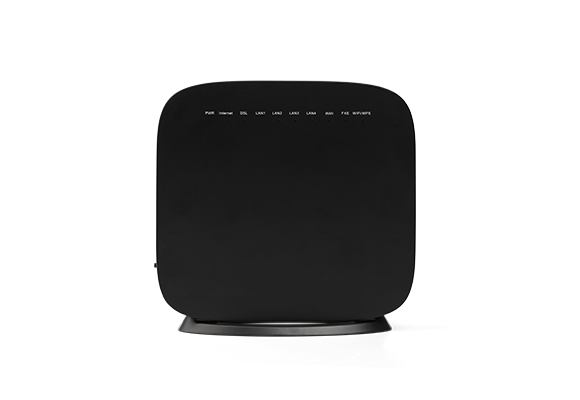

1 x VDSL Router

1 x Quick Installation Guide

1 x Power Adapter

1 x Ethernet Cable

1 x Telephone Line

1 x VDSL Splitter

Certifications

CE, RoHS
